Taking Photos with the Camera

Now for the fun part - adding the ability to take photos with the device’s camera using the Capacitor Camera API. We’ll begin with building it for the web, then make some small tweaks to make it work on mobile (iOS and Android).

Photo Service

All Capacitor logic (Camera usage and other native features) will be encapsulated in a service class. Create PhotoService using the ionic generate command:

ionic g service services/photo

Open the new services/photo.service.ts file, and let’s add the logic that will power the camera functionality. First, import Capacitor dependencies and get references to the Camera, Filesystem, and Storage plugins:

import { Injectable } from '@angular/core';
// CHANGE: Add the following imports.
import { Camera, CameraResultType, CameraSource, Photo } from '@capacitor/camera';
import { Filesystem, Directory } from '@capacitor/filesystem';
import { Preferences } from '@capacitor/preferences';

@Injectable({
  providedIn: 'root'
})
export class PhotoService {

  constructor() { }
}

Next, define a new class method, addNewToGallery, that will contain the core logic to take a device photo and save it to the filesystem. Let’s start by opening the device camera:

import { Injectable } from '@angular/core';
import { Camera, CameraResultType, CameraSource, Photo } from '@capacitor/camera';
import { Filesystem, Directory } from '@capacitor/filesystem';
import { Preferences } from '@capacitor/preferences';

export class PhotoService {

  constructor() { }

  // CHANGE: Add the gallery function.
  public async addNewToGallery() {
    // Take a photo
    const capturedPhoto = await Camera.getPhoto({
      resultType: CameraResultType.Uri,
      source: CameraSource.Camera,
      quality: 100,
    });
  }
}

Notice the magic here: there's no platform-specific code (web, iOS, or Android)! The Capacitor Camera plugin abstracts that away for us, leaving just one method call - Camera.getPhoto() - that will open up the device's camera and allow us to take photos.

Next, open up tab2.page.ts and import the PhotoService class and add a method that calls the addNewToGallery method on the imported service:

import { Component } from '@angular/core';
import { PhotoService } from '../services/photo.service';

@Component({
  selector: 'app-tab2',
  templateUrl: 'tab2.page.html',
  styleUrls: ['tab2.page.scss'],
  standalone: false,
})
export class Tab2Page {
  // CHANGE: Update constructor to include `photoService`.
  constructor(public photoService: PhotoService) {}

  // CHANGE: Add `addNewToGallery` method.
  addPhotoToGallery() {
    this.photoService.addNewToGallery();
  }
}

Then, open tab2.page.html and call the addPhotoToGallery() function when the FAB is tapped/clicked:

<ion-header [translucent]="true">
  <ion-toolbar>
    <ion-title> Tab 2 </ion-title>
  </ion-toolbar>
</ion-header>

<ion-content>
  <ion-header collapse="condense">
    <ion-toolbar>
      <ion-title size="large">Tab 2</ion-title>
    </ion-toolbar>
  </ion-header>

  <ion-fab vertical="bottom" horizontal="center" slot="fixed">
    <!-- CHANGE: Add a click event listener to the floating action button. -->
    <ion-fab-button (click)="addPhotoToGallery()">
      <ion-icon name="camera"></ion-icon>
    </ion-fab-button>
  </ion-fab>
</ion-content>

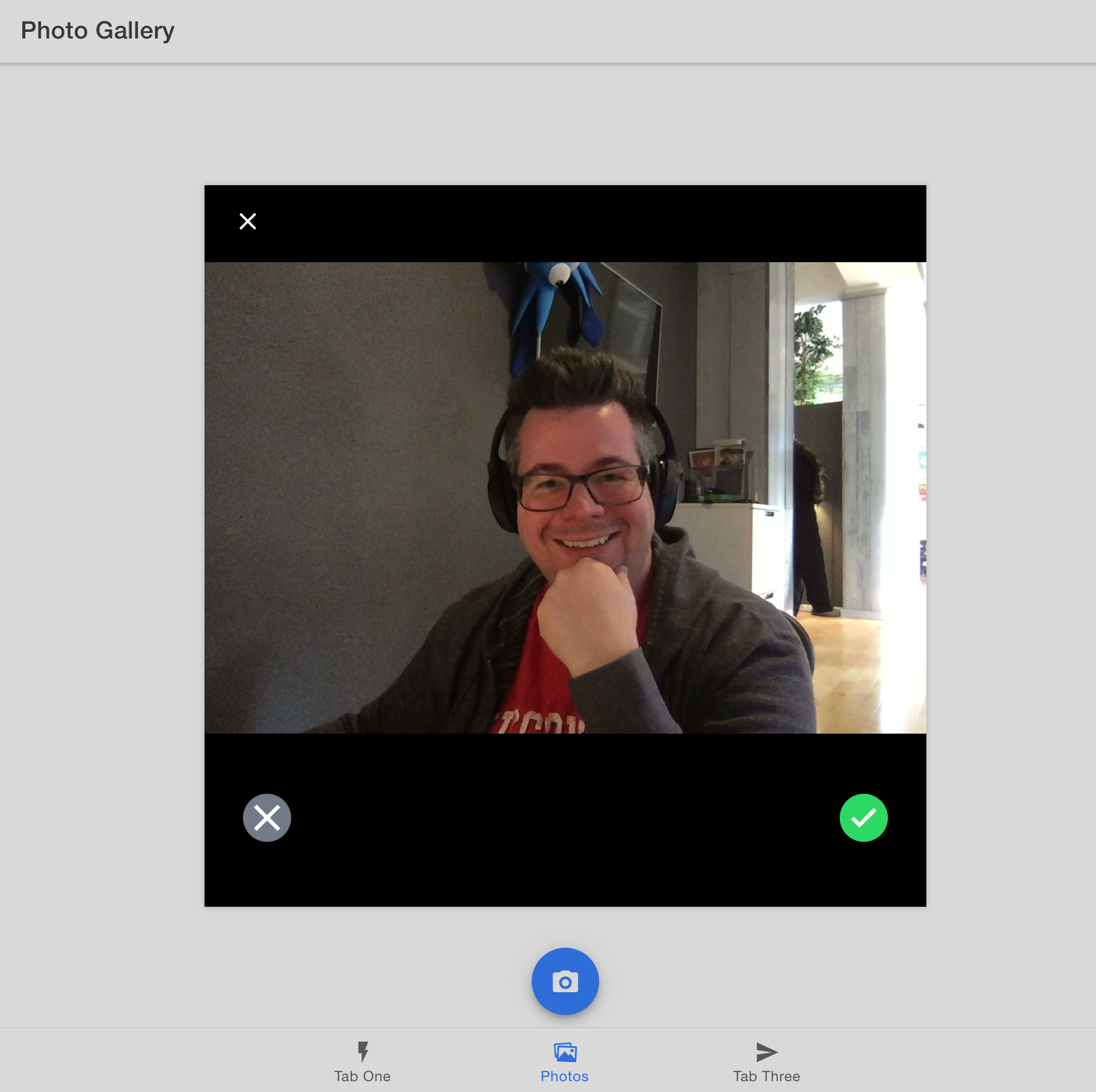

Save the file, and if it's not running already, restart the development server in your browser by running ionic serve. On the Photo Gallery tab, click the Camera button. If your computer has a webcam of any sort, a modal window appears. Take a selfie!

(Your selfie is probably much better than mine)

After taking a photo, it disappears right away. We need to display it within our app and save it for future access.

Displaying Photos

Return to photo.service.ts.

Outside of the PhotoService class definition (the very bottom of the file), create a new interface, UserPhoto, to hold our photo metadata:

export class PhotoService {
  // Same old code from before.
}

// CHANGE: Add the interface.
export interface UserPhoto {
  filepath: string;
  webviewPath?: string;
}

Above the constructor, define an array of UserPhoto, which will contain a reference to each photo captured with the Camera.

export class PhotoService {
  // CHANGE: Add the photos array.
  public photos: UserPhoto[] = [];

  constructor() {}

  // other code
}

Over in the addNewToGallery function, add the newly captured photo to the beginning of the Photos array.

public async addNewToGallery() {
  const capturedPhoto = await Camera.getPhoto({
    resultType: CameraResultType.Uri,
    source: CameraSource.Camera,
    quality: 100
  });

  // CHANGE: Add the new photo to the photos array.
  this.photos.unshift({
    filepath: "soon...",
    webviewPath: capturedPhoto.webPath!
  });
}

photo.service.ts should now look like this:

import { Injectable } from '@angular/core';
import { Camera, CameraResultType, CameraSource, Photo } from '@capacitor/camera';
import { Filesystem, Directory } from '@capacitor/filesystem';
import { Preferences } from '@capacitor/preferences';

@Injectable({
  providedIn: 'root',
})
export class PhotoService {
  public photos: UserPhoto[] = [];
  constructor() {}

  public async addNewToGallery() {
    const capturedPhoto = await Camera.getPhoto({
      resultType: CameraResultType.Uri,
      source: CameraSource.Camera,
      quality: 100,
    });

    // add new photo to photos array
    this.photos.unshift({
      filepath: 'soon...',
      webviewPath: capturedPhoto.webPath!,
    });
  }
}

export interface UserPhoto {
  filepath: string;
  webviewPath?: string;
}

Next, move over to tab2.page.html so we can display the image on the screen. Add a Grid component so that each photo will display nicely as photos are added to the gallery, and loop through each photo in the PhotoServices's Photos array, adding an Image component (<ion-img>) for each. Point the src (source) at the photo’s path:

<ion-header [translucent]="true">
  <ion-toolbar>
    <ion-title> Tab 2 </ion-title>
  </ion-toolbar>
</ion-header>

<ion-content>
  <ion-header collapse="condense">
    <ion-toolbar>
      <ion-title size="large">Tab 2</ion-title>
    </ion-toolbar>
  </ion-header>

  <!-- CHANGE: Add a grid component to display the photos. -->
  <ion-grid>
    <ion-row>
      <!-- CHANGE: Create a new column and image component for each photo. -->
      <ion-col size="6" *ngFor="let photo of photoService.photos; index as position">
        <ion-img [src]="photo.webviewPath"></ion-img>
      </ion-col>
    </ion-row>
  </ion-grid>

  <ion-fab vertical="bottom" horizontal="center" slot="fixed">
    <ion-fab-button (click)="addPhotoToGallery()">
      <ion-icon name="camera"></ion-icon>
    </ion-fab-button>
  </ion-fab>
</ion-content>

Save all files. Within the web browser, click the Camera button and take another photo. This time, the photo is displayed in the Photo Gallery!

Up next, we’ll add support for saving the photos to the filesystem, so they can be retrieved and displayed in our app at a later time.
